Efficient Data Conversion with the Rs 485 Converter - A Must-Have for Industrial Automation
A Rs 485 converter is a device that enables communication between devices using the Rs 485 protocol, allowing for efficient data transfer.
Have you ever struggled with data being sent over a long distance? Do you find it difficult to maintain signal integrity and prevent data loss while transmitting data between devices? If so, you're not alone. Many industries face this problem, and the solution is the Rs 485 converter.

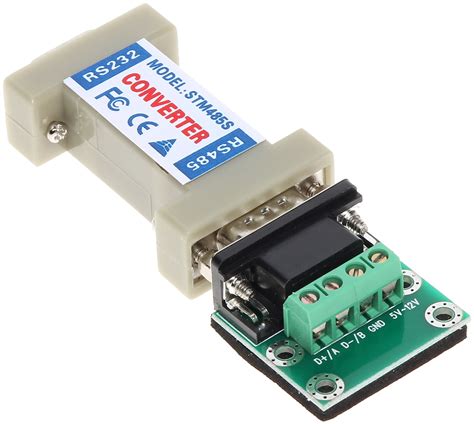

The Rs 485 converter is a device that converts signals between two communication protocols – RS-232 and RS-485. It's widely used in industrial automation, security systems, and other applications that require long-distance data transmission. The converter not only enables data transmission over long distances but also ensures that the data is transmitted accurately and reliably.
If you're struggling to transfer data over a long distance without losing accuracy or experiencing signal loss, then the Rs 485 converter can help. This device converts serial data into a format suitable for long-distance transmission. This method results in a significantly reduced possibility of data corruption and input/output errors, minimizing the odds of data loss or misinterpretation along the way. With an Rs 485 Converter, your data can now travel up to 1200 meters using CAT5 cable.
One unique feature of the Rs 485 converter is that multiple devices can be connected using a single transmission line. Unlike RS-232, which allows only one device to communicate at a time, RS-485 enables multiple devices to chat multilaterally. This feature is what makes the device ideal for factory environments where many devices are involved.
Another benefit of using an Rs 485 converter is that it operates at half-duplex mode instead of full-duplex. Full-duplex mode does not allow simultaneous transmission in both directions, thus resulting in timing issues. Nevertheless, half-duplex mode ensures effective device synchronization and effective communication between sending and receiving systems.
The Rs 485 converter offers superior protection against electrical interference and short-circuits. The device's robust design can withstand harsh environments, resisting dust and water effectively. Additionally, the system provides effective protection against overheating, voltage fluctuation, and other electrical challenges.
The Rs 485 converter is remarkably affordable, making it desirable if your budget is tight, yet you must ensure effective communication between devices. Unlike investing in long-range wireless solutions, using an Rs 485 converter can save you a significant amount of money while still providing reliable communication.
Interestingly, the Rs 485 converter has excellent compatibility with most devices in use today. That means that it's possible to integrate this device into any system without necessarily upgrading or changing existing hardware. Therefore, you don't need to worry about hardware compatibility conflicts when using the Rs 485 converter.
In conclusion, if you're frequently struggling to send data over long distances or interconnect multiple devices using legacy communication systems, the Rs 485 converter can help solve these problems. The device offers superior signal integrity, resistance to electrical noise, wide compatibility, exceptional cost-effectiveness, and much more.
Switch to the Rs 485 converter and enjoy reliable and secure communication between your devices without breaking the bank.
The Importance of RS-485 Converter in Industrial Settings
RS-485 converter is an essential component in industrial settings where reliable communication and data transmission are crucial. This technology allows companies to connect devices over long distances while ensuring stable and secure data exchange.
What is RS-485 Converter?
RS-485 is a serial communication protocol used to control many industrial automation devices such as sensors, meters, and actuators. The protocol is designed to transmit data over long distances up to 4000 feet or 1200 meters. However, RS-485 signals can quickly degrade due to noise or voltage fluctuations as they travel longer distances, making it susceptible to data loss or corruption.
This is where the RS-485 converter comes into play. It is a device that converts the RS-485 signal into a stable and standardized signal format, such as Ethernet or USB, increasing its reliability and stability over long distances. This ensures that data transmission is accurate and resilient, even in harsh environments and noisy settings.
Benefits of RS-485 Converter
The RS-485 converter offers several benefits for industrial and automation settings. One of the most significant advantages is its ease of use and cost-effectiveness. Companies can easily deploy RS-485 infrastructure since it only requires two wires, thus reducing wiring complexity and terminations costs.
Another benefit of using an RS-485 converter is its versatility. It supports several data formats and protocols, including Modbus, Profibus, and DeviceNet, making it highly adaptable and interoperable. This means that companies can integrate different types of devices that support various communication protocols seamlessly.
The RS-485 converter is also ideal for transmitting data over long distances without signal loss or degradation. It uses differential signaling, which reduces electromagnetic interference (EMI), common mode rejection, and noise immunity hence ensuring secure and stable transmission over long distances.
Types of RS-485 Converters
There are several types of RS-485 converters available in the market today. The most common ones include:
- USB to RS-485 converter: It converts USB signal from a computer to RS-485 standard signal, making it ideal for connecting to industrial devices through a computer.
- Ethernet to RS-485 converter: It allows companies to integrate RS-485 devices with an Ethernet network, thus enabling remote monitoring and management.
- Wireless RS-485 converter: It allows wireless communication between RS-485 devices, eliminating the need for physical wiring.
Choosing the Right RS-485 Converter
Choosing the right RS-485 converter depends on several factors such as the required data format, distance, and environment. It is essential to evaluate and understand your specific needs before making any purchase decision.
You should also consider the level of isolation, voltage range, and baud rate when choosing an RS-485 converter. High-level of isolation and wide-range voltage ensures reliability and safety, while high baud rates ensure faster data transmission.
Conclusion
RS-485 converter is a vital component in any industrial setting that requires reliable and stable communication between different devices. It offers several benefits such as versatility, ease of use, and cost-effectiveness. There are several types of RS-485 converters available in the market today, each suited to specific needs. Choosing the right RS-485 converter depends on several factors, including data format, distance, and environment. Companies that invest in this technology enjoy efficient and secure data transmission, streamlined communication, and an overall reduction in operational costs.
A Comprehensive Comparison Between RS 485 Converters: Which One is Best for You?
Introduction
If you're someone who works with serial communication, it's highly likely that you've heard about RS 485 converters. These devices can be found in various industrial applications, from building automation to manufacturing. In this blog post, we will compare some of the most popular RS 485 converters available in the market. We'll take a look at their features, pros and cons, and help you determine which one would be the best fit for your project.Overview
Before we dive into the details, let's first understand what RS 485 is and how it works. RS 485 is a standard protocol for serial communication used in the industry. It allows devices to communicate over relatively long distances (up to 1200 meters) and at high speeds (up to 10 Mbps). The protocol supports multi-point communication, which means that multiple devices can be connected to the same communication line.Feature Comparison
Here's a comparison table of the key features of the most popular RS 485 converters: | Converter | Max Speed | Isolation | Operating Temp. | Power Supply | Price || --------- | ---------| --------- | --------------- | ------------ | ----- || RS485 to USB Converter | 921 Kbps | No | 0°C to 60°C | USB powered | $15-20 || RS485 to Ethernet Converter | 1 Mbps | Yes | -40°C to 85°C | DC 5V/12V | $30-50 || RS485 to WiFi Converter | 115200 bps | No | -20°C to 70°C | AC 100-240V | $40-80 || RS485 to Bluetooth Converter | 2 Mbps | No | -10°C to 50°C | DC 5V/12V | $20-30 |RS485 to USB Converter
RS485 to USB converters are the most basic type of RS 485 converters available in the market. As the name suggests, they convert the RS 485 signal to USB, allowing you to connect serial devices to a computer that doesn't have a serial port. These converters usually come with drivers that need to be installed on the computer before use. They are affordable, easy to use, and suitable for applications that do not require isolation. However, they are not recommended for high-speed communication or industrial environments due to their lack of isolation and limited operating temperature range.Pros
- Affordable - Easy to use - Compatible with most operating systemsCons
- No isolation - Limited operating temperature range - Not recommended for high-speed communicationRS485 to Ethernet Converter
RS485 to Ethernet converters allow you to connect serial devices to an Ethernet network, enabling remote access and control of these devices from anywhere in the world. They usually come with built-in isolation, which helps protect the connected devices from voltage spikes and surges. They are ideal for industrial applications that require reliable and secure communication over long distances. However, they are more expensive than RS485 to USB converters and require an external power supply.Pros
- High-speed communication - Built-in isolation for protection - Suitable for harsh industrial environmentsCons
- More expensive - Need external power supply - May require advanced network configurationRS485 to WiFi Converter
RS485 to WiFi converters allow you to connect serial devices to a WiFi network, providing wireless access and control of these devices. They are ideal for applications where running Ethernet cables is not practical or possible. They usually come with a built-in web server that allows you to configure and access the connected devices from a mobile device or computer. However, they have a limited operating temperature range and may not be suitable for industrial environments that require high reliability.Pros
- Wireless access and control - Easy to set up - Built-in web serverCons
- Limited operating temperature range - May not be suitable for industrial environments - More expensive than RS485 to USB convertersRS485 to Bluetooth Converter
RS485 to Bluetooth converters allow you to connect serial devices to a Bluetooth-enabled device, such as a smartphone or tablet. They are ideal for applications that require wireless communication between a mobile device and a remote device. They usually come with a built-in Bluetooth module and require an external power supply. However, they have a limited operating temperature range and may not be suitable for industrial environments that require high reliability.Pros
- Wireless communication with mobile devices - Easy to set up - Built-in Bluetooth moduleCons
- Limited operating temperature range - Not suitable for high-speed communication - May not be suitable for industrial environmentsConclusion
In conclusion, the best RS 485 converter for your project depends on your specific requirements. If you need affordable and basic communication, RS485 to USB converters would be sufficient. If you need long-distance communication with high reliability, RS485 to Ethernet converters are the way to go. For wireless communication with mobile devices, RS485 to WiFi or Bluetooth converters would be the best choice. We hope this comparison article has helped you understand the differences between the various types of RS 485 converters available in the market, and pick the one that suits your needs.Tips and Tutorial for RS-485 Converter
Introduction
If you are working on a project that needs long-range communication, then RS-485 serial communication is the way to go. RS-485 is used to connect devices together in a network so they can communicate with each other. However, connecting devices in an RS-485 network can be tricky. This is where the RS-485 converter comes into play.What is an RS-485 Converter?
An RS-485 converter is a device that converts RS-232 or USB signals into RS-485 signals. It enables communication between an RS-485 network and a computer, PLC, or other devices. It is essential to use an RS-485 converter when connecting devices in an RS-485 network to ensure proper communication.How to Choose an RS-485 Converter
Choosing an RS-485 converter is an essential step in building an RS-485 network. Some factors to consider when selecting an RS-485 converter include:- Baud rate: Ensure that the RS-485 converter supports the required baud rate for your project.
- RS-485 protocol: Check that the RS-485 converter supports the protocol used in the network, such as Modbus.
- Cable length: Some RS-485 converters have a limit to the cable length used between devices, so verify the specifications before purchasing.
- Power supply: Ensure that the RS-485 converter can use the same power source as the other devices in the network or has its own power supply.
How to Connect an RS-485 Converter
Connecting an RS-485 converter may seem daunting, but it is relatively simple. The steps involved include:- Connect the RS-485 converter to the computer or PLC using USB or RS-232 interface.
- Attach the RS-485 network cables to the converter's RS-485 interface.
- Connect the other end of the cables to the RS-485 devices.
- Ensure that the device address is properly set up.
Common Problems with RS-485 Converters
While RS-485 converters are great for long-range communication, they can have issues that may hamper communication. These problems include:- Incorrect wiring: Proper cable configuration is critical in setting up an RS-485 network. Make sure the correct wiring is used and follow the manufacturer's instructions carefully.
- Incompatible baud rate: Ensure that the baud rate is correctly set up in both the devices and the RS-485 converter.
- Incompatible protocol: Ensure that the protocol used in the network is compatible with the RS-485 converter.
- Interference: Sometimes, electrical noise can interfere with the communication process. To mitigate this, ensure that all devices are properly grounded.
Conclusion
RS-485 converters are essential in building robust networks that require long-distance communication. Careful considerations should be taken when choosing and connecting devices in an RS-485 network. By following the tips discussed in this article and troubleshooting common problems, you can create a seamless communication system.Everything You Need to Know About the Rs 485 Converter
The RS-485 Converter is an essential device for any system that needs to transfer data over long distances. It is essentially a protocol used for transmitting data between different devices. It is often used in applications such as process control, industrial automation, and communication systems.
The primary advantage of using the RS-485 converter is its ability to support communication over a distance of up to 4,000 feet. This makes it ideal for use in building automation systems where there are several floors or multiple buildings.
In this article, we will discuss everything you need to know about the RS-485 converter. From its features to its application, we have got you covered.
How Does the RS-485 Converter Work?
The RS-485 converter works by encoding data into a serial communication format that is transmitted over a twisted-pair cable. The cable typically contains two wires, one for transmitting data and the other for receiving data.
The device's primary function is to act as a data transmitter that receives TTL/RS232 signals from a host system and converts them into RS-485 signals. Once the data reaches its destination, the converter then transforms the RS-485 signals back into TTL/RS232 signals readable by the end device.
What Makes the RS-485 Converter Stand Out from Other Protocols?
The RS-485 converter is markedly different from other protocols due to several reasons. Firstly, it has a digital signal processing feature that enables it to transmit data over long distances. Secondly, the converter supports multiple devices connected to the same line, making it ideal for multi-point applications.
Additionally, the RS-485 converter operates with only two wires, which reduces the cost of installation and simplifies installation. Lastly, it has robust error detection capabilities, indicated by its 15-bit CRC.
Some Applications of RS-485 Converters
RS-485 converters are highly popular in industrial automation applications. They are also commonly used in SCADA systems, building security networks, and HVAC systems. Below are some other common applications of the converter:
- Wholesale and retail establishments
- Traffic control systems
- Medical instrumentation process control
- HVAC systems
- Energy Management Systems
Features of the RS-485 Converter
The RS-485 converter comes with many features that make it ideal for most applications. Here are some of the key features to expect:
- Support for multiple devices on the same line
- Error detection mechanism
- Long-distance support
- Versatile architecture
- High-speed communication
- Low power usage
Tips for Choosing the Right RS-485 Converter for your Application
With several RS-485 converters in the market, you may be wondering how to pick the right one. Here are some crucial factors to consider when selecting an RS-485 converter:
- Transmission mode (half-duplex or full-duplex)
- Cable distance to be covered
- Baud rate requirements
- Use of shielded twisted-pair cables
- Number of supported devices
- Ease of installation
Final Thoughts
The RS-485 converter is a versatile protocol that delivers high-speed communication and supports long-distance data transmission. With the right settings, it can support multi-point applications, making it ideal for industrial automation projects. We hope this article has provided you with valuable insight on the RS-485 converter, and you now have more knowledge regarding its features, application, and tips for selecting the best one for your project.
Thank you for visiting our blog, and we hope to see you again soon!
People Also Ask About Rs 485 Converter
What is an RS 485 Converter?
An RS 485 Converter is a device that converts serial communication signals from RS 485 protocol to other communication protocols like Ethernet, USB or wireless.
How does an RS 485 Converter work?
An RS 485 Converter works by converting the serial communication signal from RS 485 to other communication protocols. The converter receives the RS 485 signals and then manages to convert them into the desired protocol.
What devices can be connected to RS 485 Converter?
A variety of devices can be connected to RS 485 Converter, including PLCs, industrial control systems, sensors, measurement devices, and more.
What are the advantages of using an RS 485 Converter?
The advantage of using an RS 485 Converter is the ability to connect different types of devices that operate on different communication protocols. This saves time and costs because it eliminates the need for multiple converters or special cables. Additionally, RS 485 technology allows for communication over long distances, making it ideal for industrial control systems.
What should I consider when buying an RS 485 Converter?
When buying an RS 485 Converter, consider the following factors:
- The intended application
- The required communication protocols
- The distance of communication
- The power requirements
Are there any installation requirements for an RS 485 Converter?
Yes, there are some installation requirements that must be considered when installing an RS 485 Converter, such as proper grounding of the device, ensuring the correct wiring and connection of the device, and selecting the correct baud rate for communication.
People Also Ask about Rs 485 Converter
1. What is an RS 485 converter?
An RS 485 converter is a device that enables communication between RS 485 (Recommended Standard 485) and other interfaces or devices that use different communication protocols. It converts the electrical signals from RS 485 into a format compatible with the target interface, allowing seamless data exchange.
2. How does an RS 485 converter work?
An RS 485 converter works by receiving RS 485 signals and converting them into signals compatible with the target interface. It typically employs a combination of hardware and firmware to handle the conversion process. The converter interprets the RS 485 signals, adjusts voltage levels if necessary, and translates the data into a format understood by the target device or interface.
3. What are the advantages of using an RS 485 converter?
There are several advantages to using an RS 485 converter:
- Compatibility: It allows communication between RS 485 devices and other interfaces or devices that use different protocols.
- Long-distance communication: RS 485 supports long-distance communication, making it suitable for applications that require data transmission over extended distances.
- Noisy environments: RS 485 is resilient to noise interference, making it ideal for industrial environments where electromagnetic interference or signal degradation may occur.
- Multi-drop capability: RS 485 supports multi-drop communication, enabling multiple devices to be connected on the same bus, reducing wiring complexity.
4. Can an RS 485 converter be used in both directions?
Yes, an RS 485 converter can be used bidirectionally. It can convert signals from RS 485 to another protocol and vice versa, allowing two-way communication between different devices or interfaces.
5. What are some common applications of RS 485 converters?
RS 485 converters find applications in various industries and systems, including:
- Building automation and control systems
- Industrial monitoring and control systems
- Process automation
- Energy management systems
- Access control systems
- Surveillance systems
6. Are RS 485 converters easy to install and configure?
Yes, RS 485 converters are generally easy to install and configure. Most converters come with user-friendly interfaces and comprehensive documentation, simplifying the installation and setup process. However, it is recommended to follow the manufacturer's instructions and guidelines for optimal performance.
Remember to consult the specific product's user manual or technical documentation for detailed instructions on installation and configuration.
